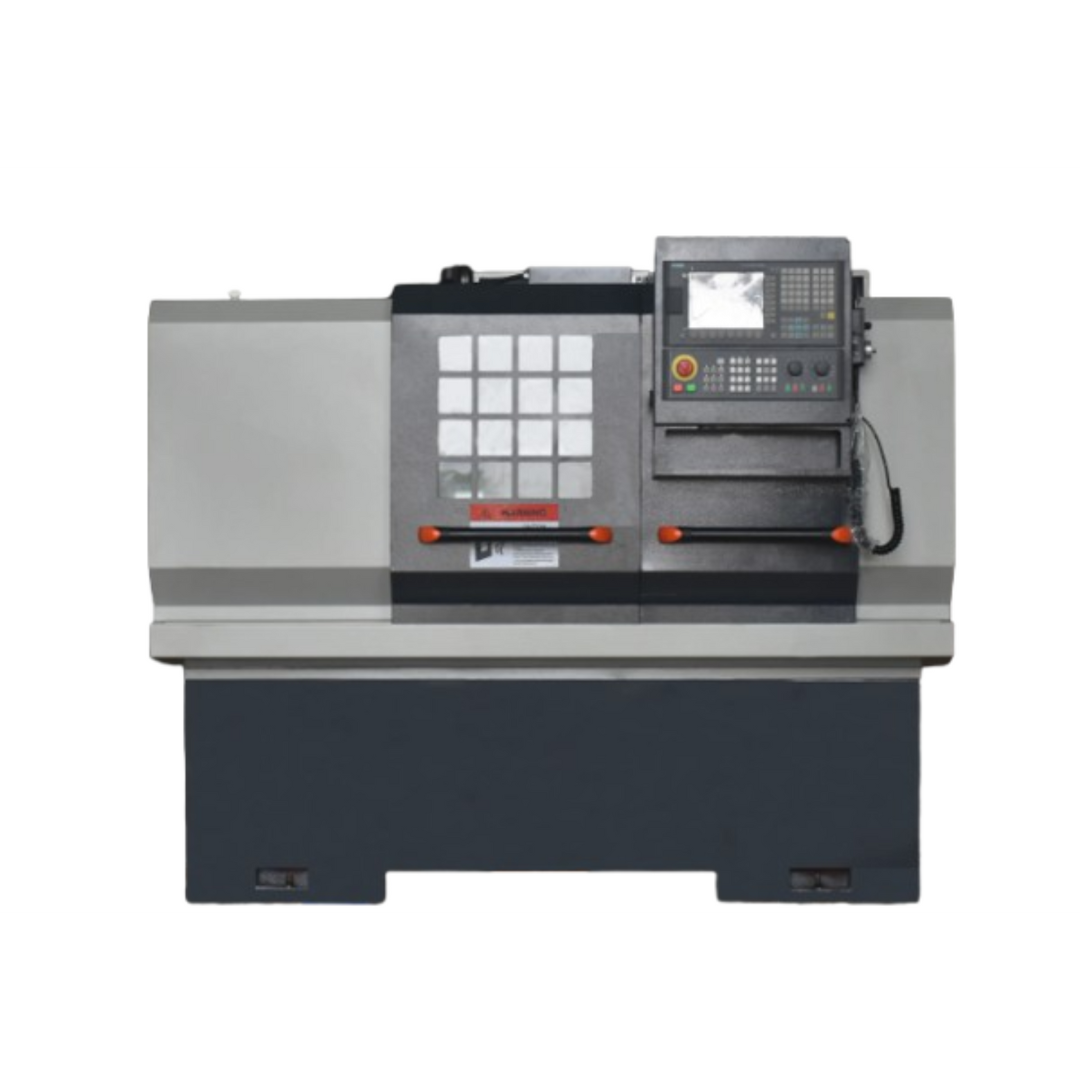

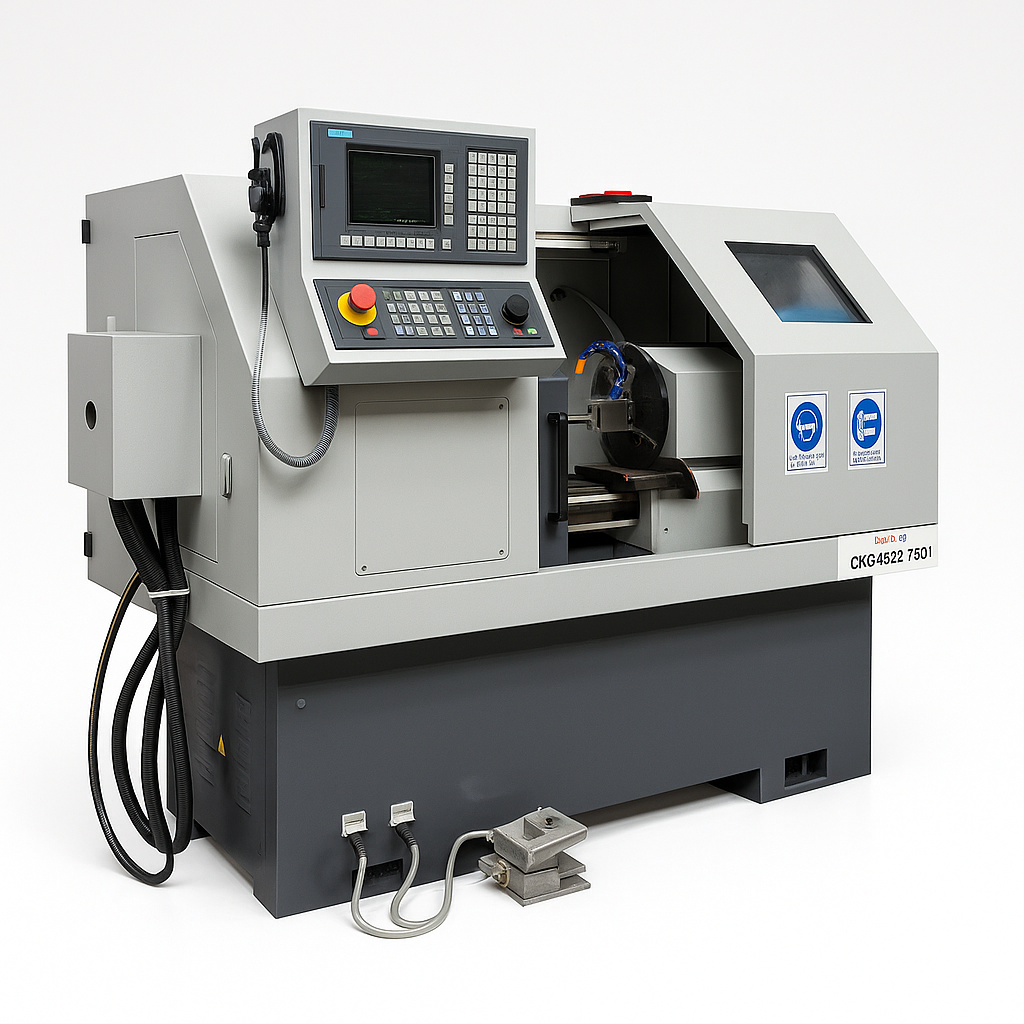

DynaPro CKG4522 Precision CNC Lathe

The DynaPro CKG4522 Precision CNC Lathe is engineered for small-to-mid size shops that demand accuracy, reliability, and a compact footprint. Its enclosed design, servo-driven axes, and intuitive control panel deliver repeatable results on steels, alloys, and engineering plastics while keeping operators safe and setups fast.

Specifications

• Spindle: A2-5 nose, 4,500 rpm, 7.5 kW vector drive

• Capacity: 300 mm swing, 220 mm max turn diameter, 450 mm between centers

• Control: 10.4" color CNC, handwheel jog, USB/Ethernet

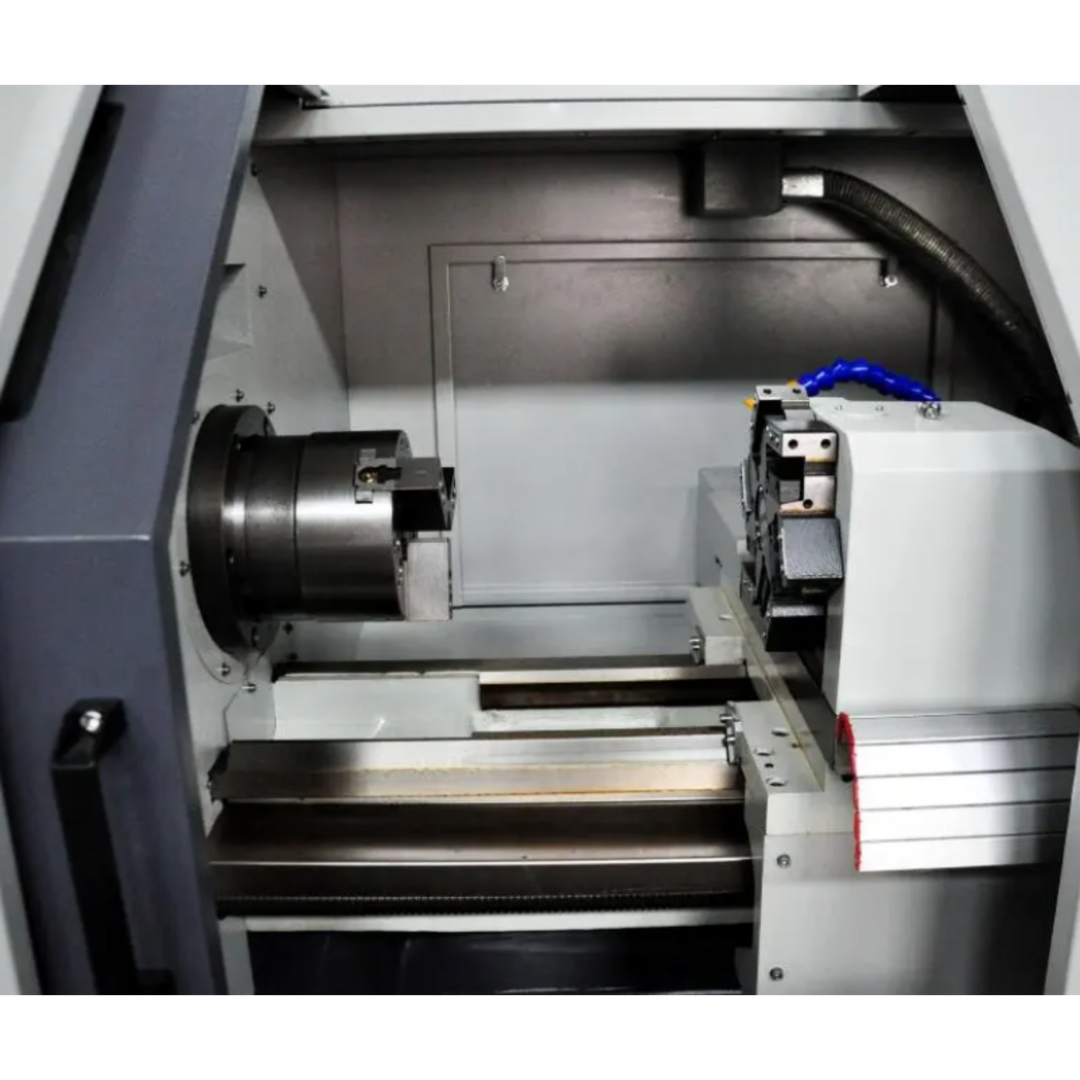

• Turret: 8-station bi-directional tool turret

• Coolant & Chip: Flood coolant with flexible nozzle, front chip tray

Features

• Rigid One-Piece Meehanite Bed: Dampens vibration for superior surface finish

• High-Precision Linear Guides: 0.005 mm repeatability on X/Z

• Auto Lubrication: Centralized metering system extends component life

• Safety Enclosure: Interlocked doors with viewing window and LED work light

• Easy Programming: Conversational cycles plus standard G-code support

• Power Chuck Ready: Includes hydraulic lines and foot pedal interface

Maintenance

• Daily: Wipe windows and ways; check coolant level and chip tray

• Weekly: Inspect tool turret alignment and clean filters

• Annually: Backlash check, spindle vibration analysis, full way lube flush

Warranty

• Machine Structure: 2 years

• Electronics & Drive Components: 1 year
