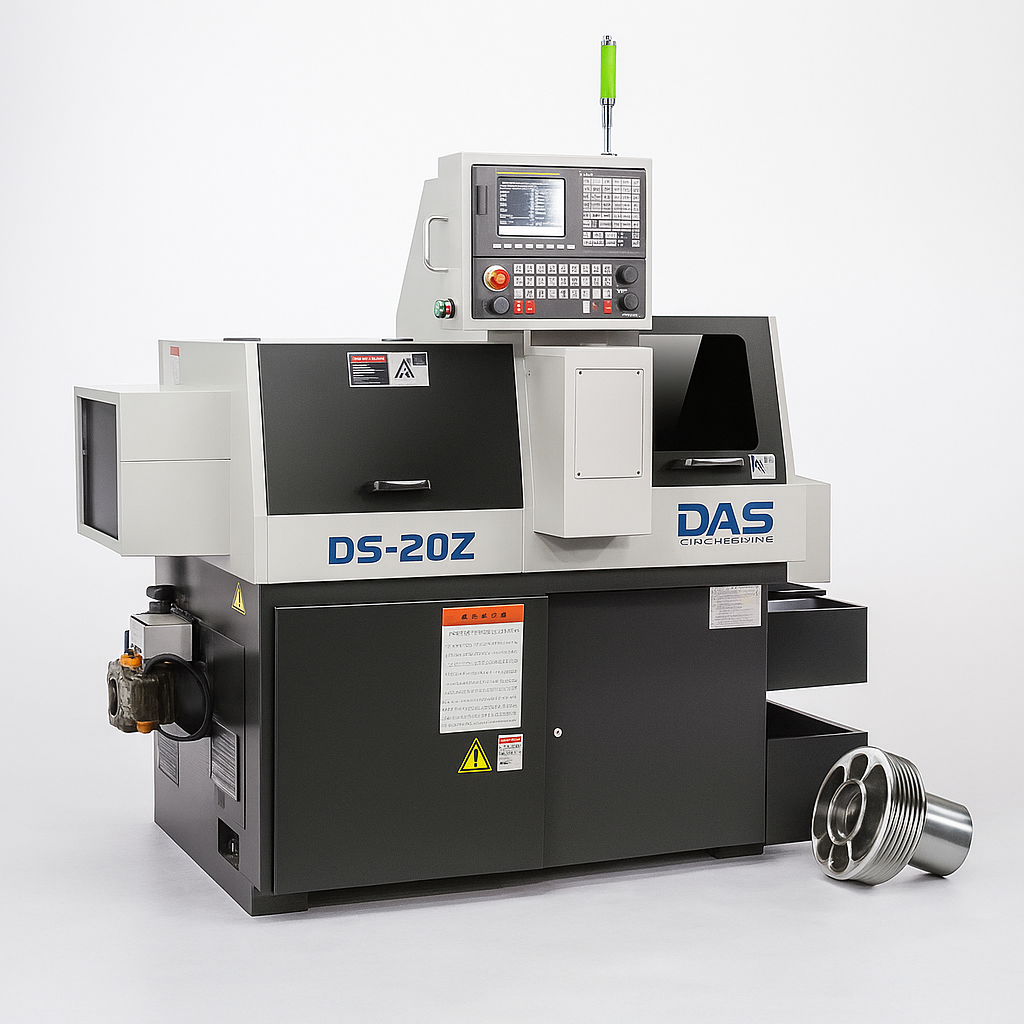

CirqeTech DS-20Z Compact CNC Turning Center
The CirqeTech DS-20Z Compact CNC Turning Center packs production power into a space-saving frame. With a high-speed spindle, servo turret, and integrated parts catcher, it excels at bushings, pulleys, and precision shafts while keeping cycle times low and operator setup simple.
Specifications
-
Spindle: 6,000 rpm, 11 kW, pneumatic chuck interface
-
Travel: X-axis 200 mm, Z-axis 380 mm, rapid 24 m/min
-

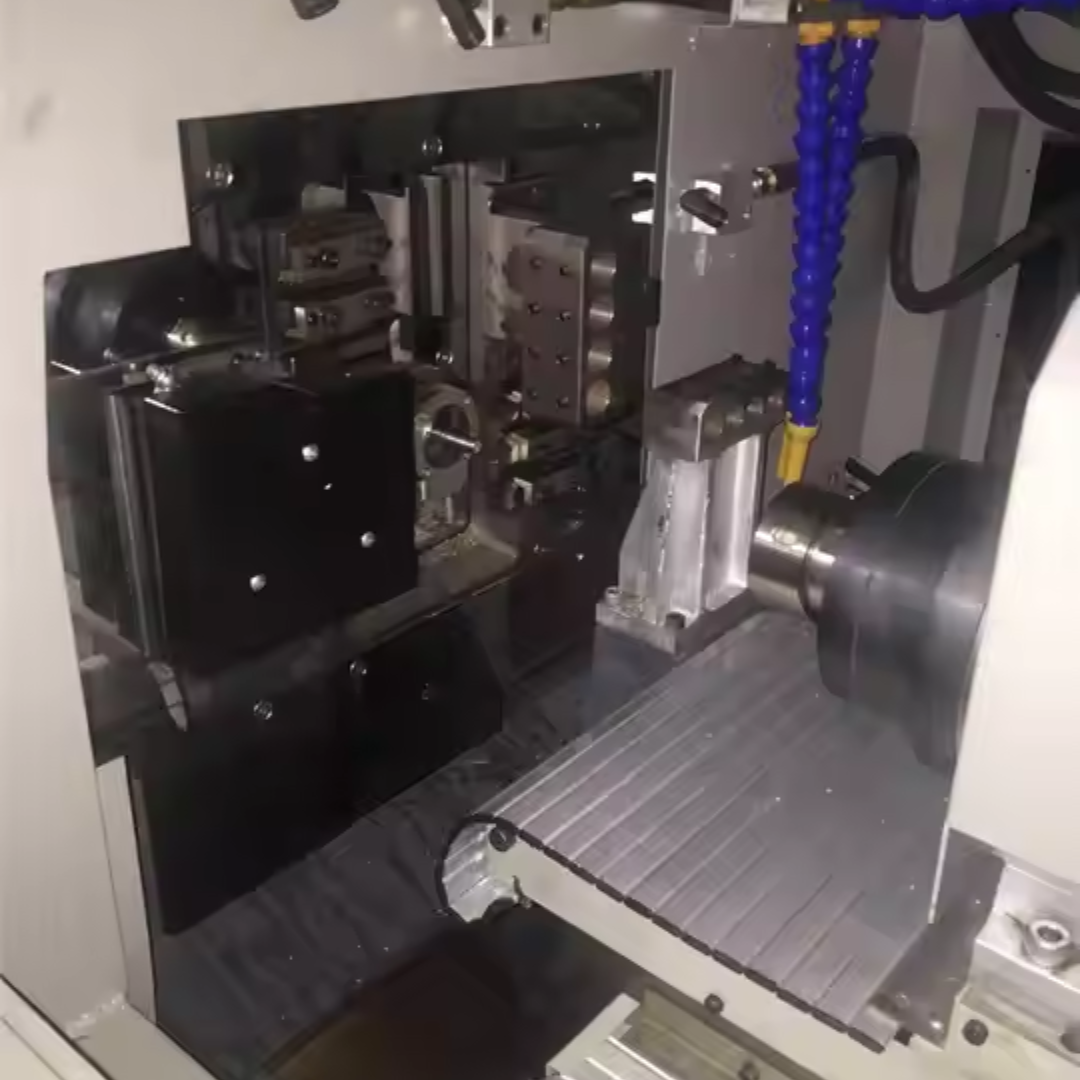

Turret: 10-station servo turret, quick-change tool holders
-
Control: Industrial CNC with USB, Ethernet, and macro B
-
Footprint: 1600 mm (L) x 1200 mm (W) x 1650 mm (H)
Features
-
Enclosed Coolant System: Side-mounted tank with easy cleanout
-
Operator Console: Full keypad, handwheel, USB job loading
-
Parts Catcher: Automatic eject chute for high-volume runs
-
Rigid Base: Cast-iron structure with level pads for stability
-
Precision: 0.004 mm repeatability; thermal compensation
-
Service Access: Wide doors and slide-out panels for maintenance
Maintenance
-
Daily: Check hydraulic/air pressure; clear chips; verify coolant
-
Weekly: Inspect turret clamping, clean magnetic filters
-
Annually: Laser calibration, spindle bearing health check, way lube refresh
Warranty
-
Casting & Frame: 3 years
-
CNC, Drives & Motors: 18 months
Customer Reviews
Bought this as an addition to our machine shop and couldn't be happier. The sleek design looks great on the floor and performance has been flawless.
The DS-20Z has transformed our rapid prototyping capabilities. Fast setup times and excellent surface finishes on our prototype parts. Arrived well packaged and CirqeTech's support during installation was outstanding.
Really impressive performance from such a compact unit.
Been running this beast for 6 months now and it's been killer. Super tight tolerances and way easier to program than our old Haas.
This turning center solved our capacity issues beautifully. The compact design allowed us to add it to our existing floor layout without major reorganization. Quality is excellent and it handles our aluminum parts with impressive consistency.
